Description

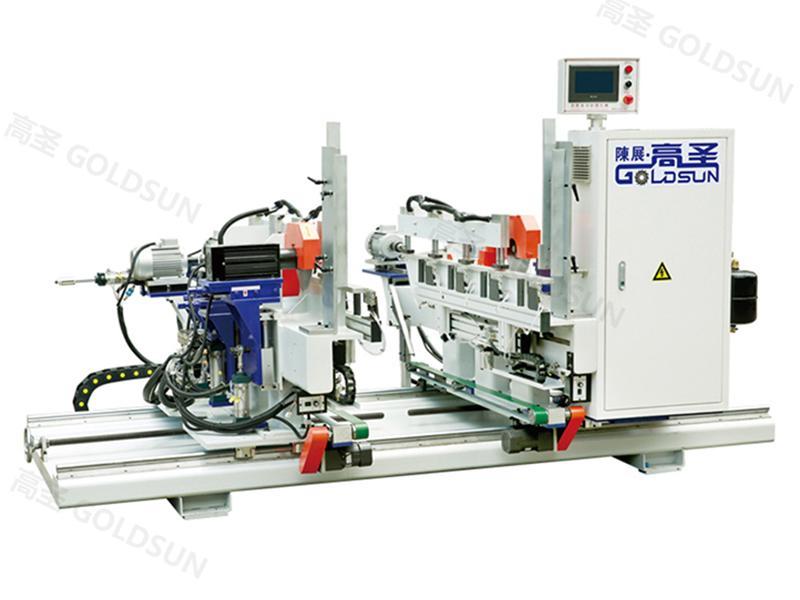

The GS-32 fixed length cutting notching grooving drilling machine carries out cutting, notching, grooving and drilling for the production of bedroom cabinets. It combines automatic loading and unloading, fixed length notching, drilling at the expansion joints and ends as a whole in order to increase its efficiency and stable manufacturing processes. A single machine can process 5 to 8 pieces of timber/minute, with a maximum efficiency of about 4,000 pieces/8 hours.
Parameters
Length control motor power
1.5kw x 2
Notching motor power
3.7kw x 2
Grooving motor power
0.75kw x 2
Salad drilling motor power
0.75kw x 2
Double end drilling motor power
1.5kw x 2
Total power
15.4kw
Efficiency
5-8 pieces/min
Machine size(length*width*height)
3200x1800x1600mm
Weight
1000kg

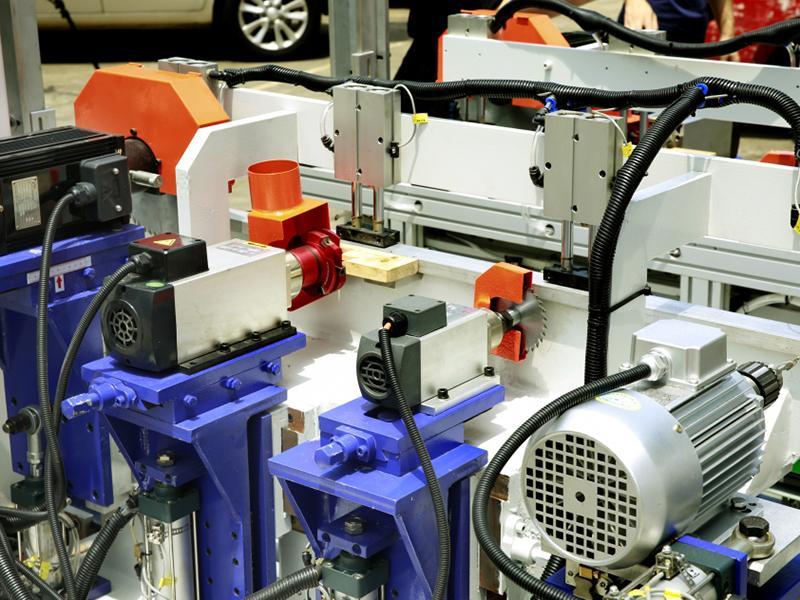

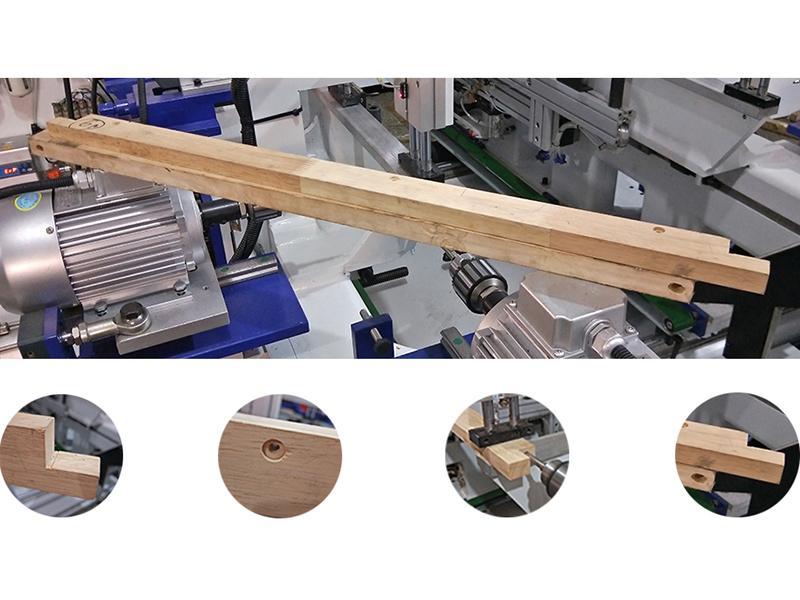

Product details show

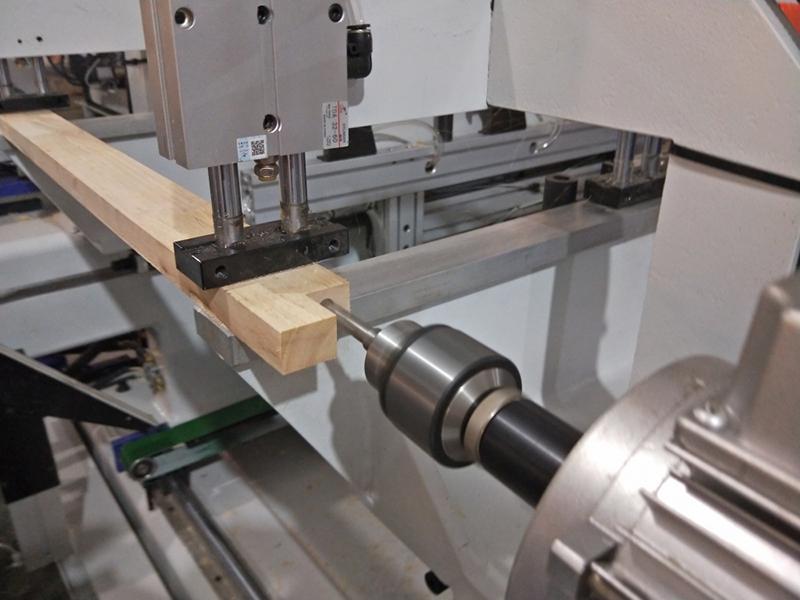

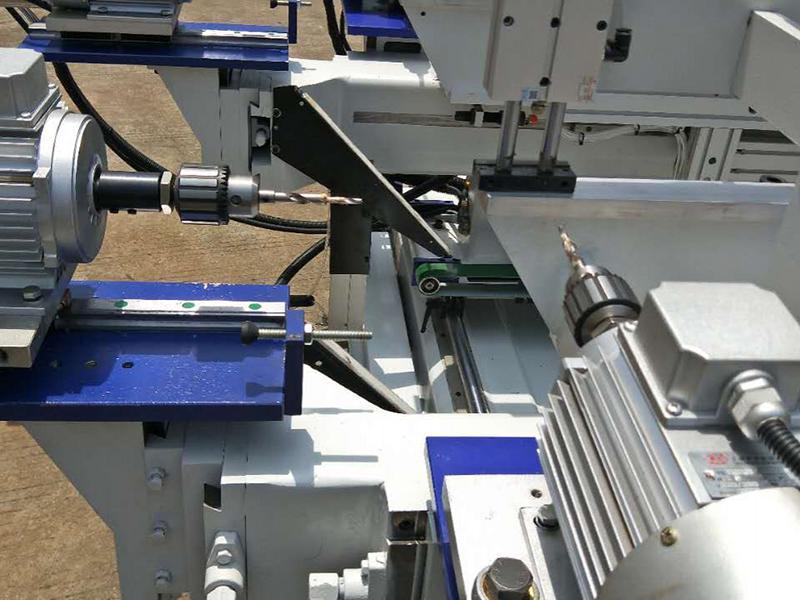

Drilling

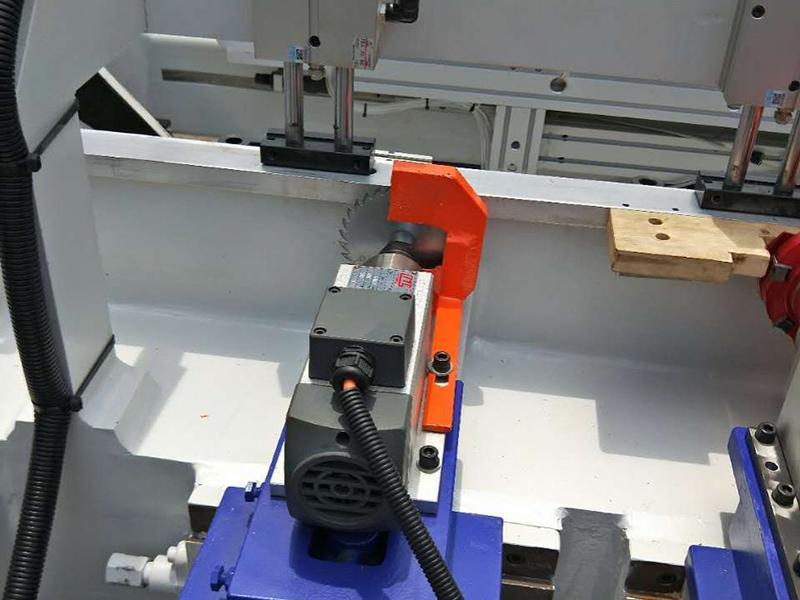

Cutting

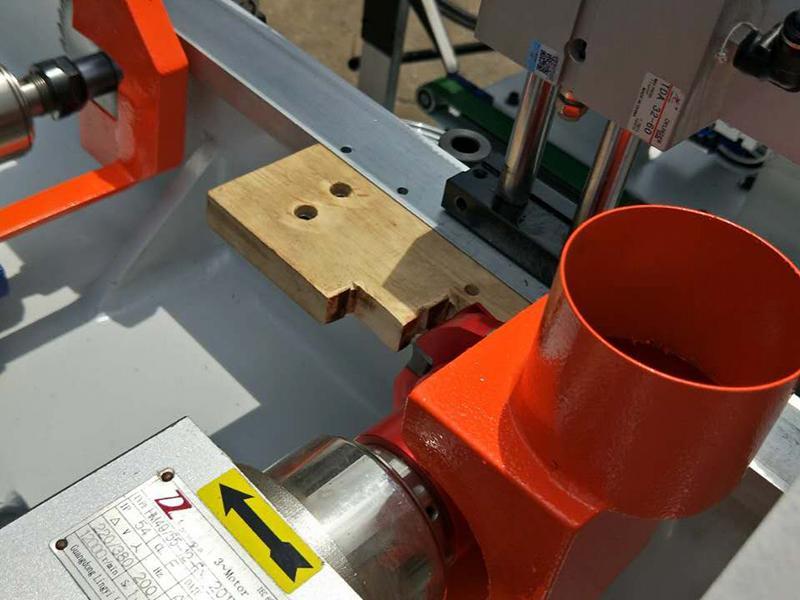

Fixed length notching
Characteristics
This machine carries out cutting, notching, grooving and drilling as a whole to increase its production efficiency.
The automatic loading and unloading functions both save manufacturing costs.
The high-quality drilling motor and cutting equipment can prolong its service life and decrease the failure rate.
The user interface is simple and clear, which makes it easy to operate.
