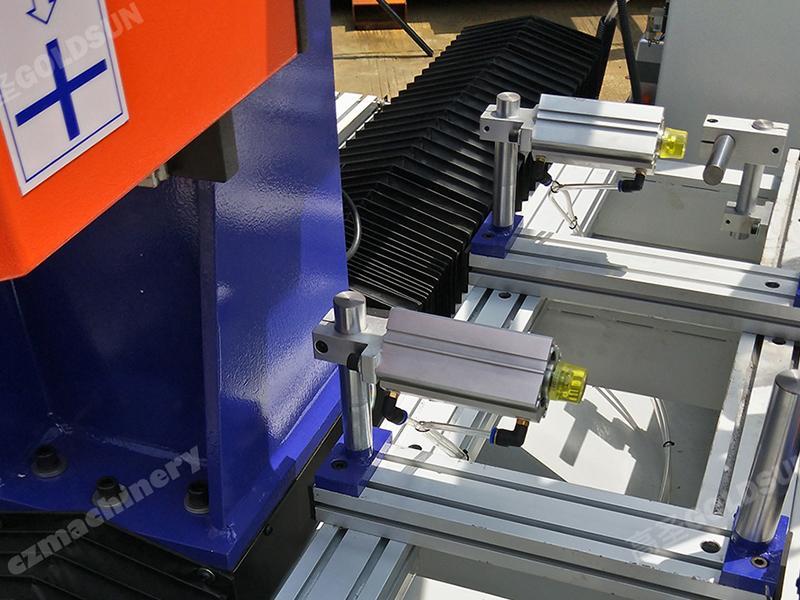

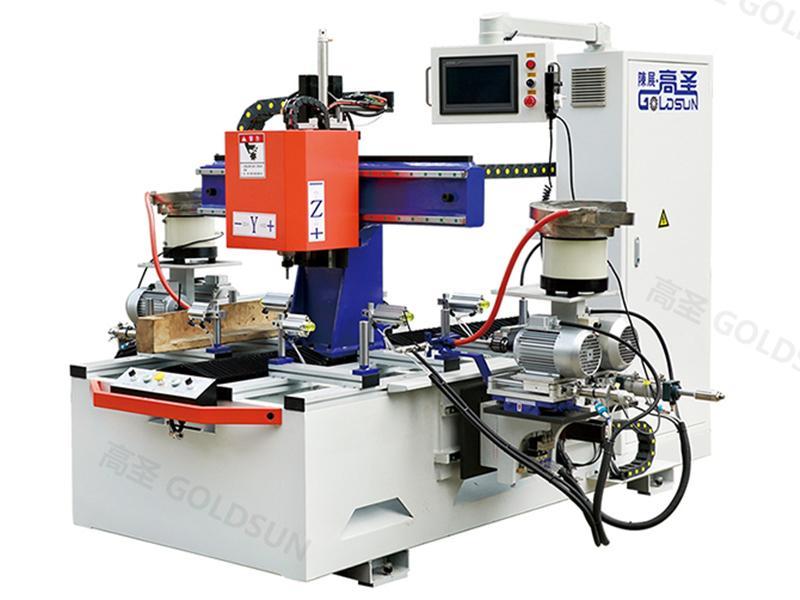

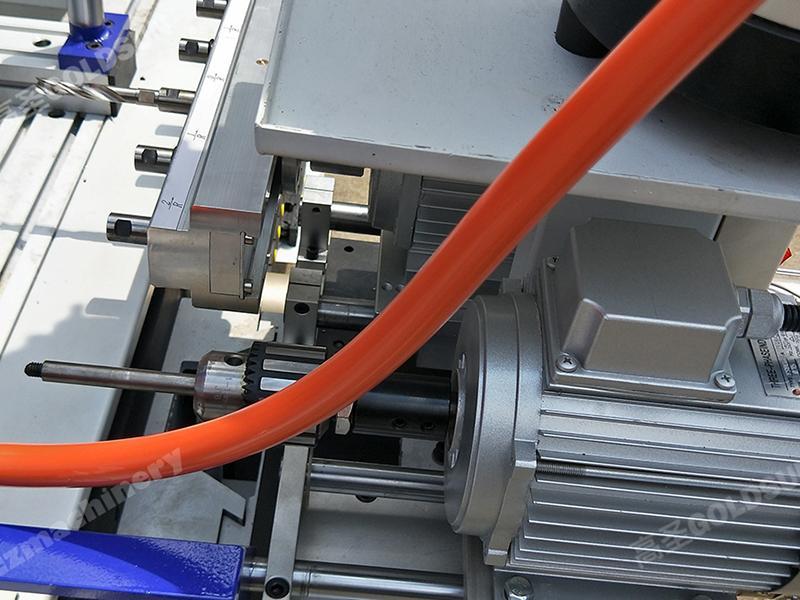

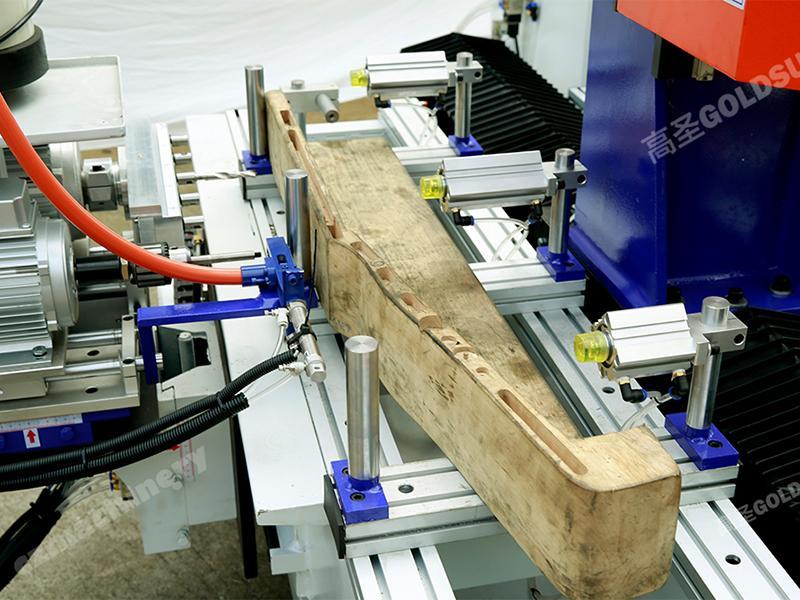

Multi Mortising Drilling Tapping Machine for Bedpost
The GS-18-3 slot mortising machine is mainly used for slot mortising, drilling and tapping processes for making wooden bedposts. This multi mortising drilling tapping machine can mortise different shapes of slot, such as circular, square and circular arc. This product has the advantages of accurate processing sizes and high efficiency, and will process 200 sets of bedposts every 8 hours.
|Servo motor: X*Y*Z*U*V ||750w*750w*400w*750w*750w |
|Mortising motor ||2.2kwx1 |
|Drilling motor ||2.2kwx2 |
|Machine size ||2500x2000x1900mm |
|Weight ||1000kg |
- The multi mortising drilling tapping machine for bedpost integrates slot mortising, drilling and tapping functions as a whole to effectively satisfy the requirements of making wooden bedposts. This machine is highly efficient and safe.
- You can debug the position of the hand wheel to mortise different shapes of slots. 200 sets of setting can be saved inside to make the operation more efficient.
- The simple user interface makes it easy to be operated.
- The high-quality servo motor, actuator and well-set circuit can ensure the system works smoothly and stably.
