Description

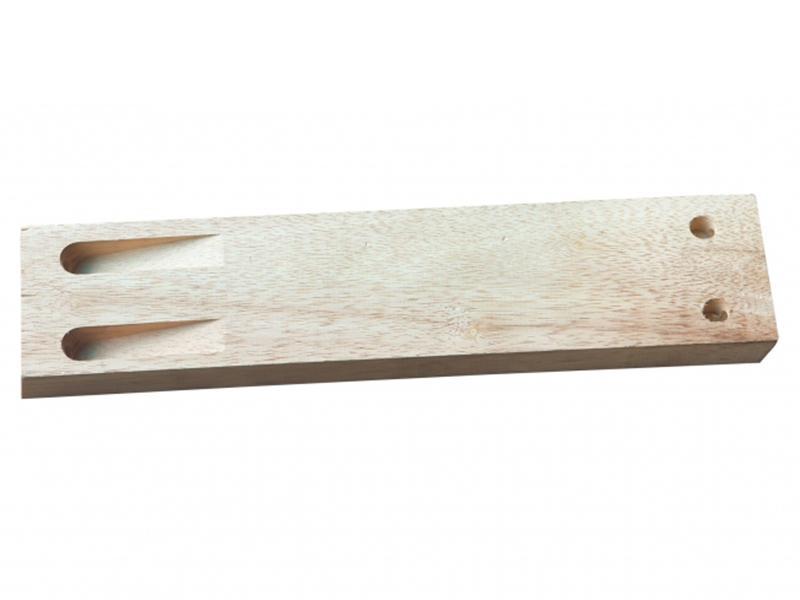

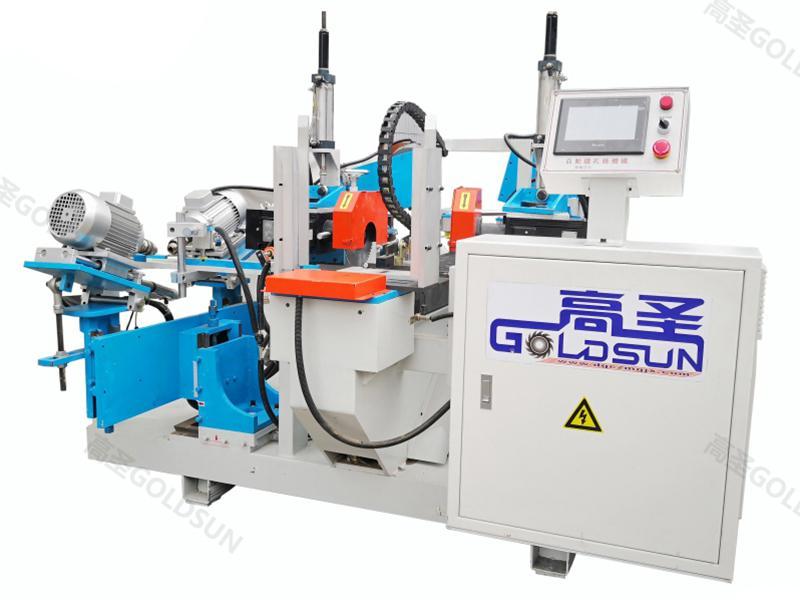

The GS-18 chair leg cutting mortising drilling tapping machine is used for dual cutting, slot mortising and drilling for the production of dining tables and chairs. The machine replaces manual labor for each of those processes, and will automatically load and unload workpieces, thereby effectively increasing the efficiency and output. This equipment is capable of processing nearly 4 pieces of wood/minute, with nearly 2,000 pieces in 8 hours.
Cutting motor | 1.5kw×2 |
Mortising motor | 3kw×2 |
Drilling Motor (from left and right) | 1.5kw×2 |
Drilling motor | 0.75Kw×2 (single hole driller) |
Servo motor | 400w×1 |
Effective manufacturing length | Length: 300-400mm |
Width: 50-75mm | |
Thickness: 15-25mm | |
Machine size | 2200×2000×1500mm; |
Weight | About 1200kg |
Efficiency | 3-4 pcs/minute |
