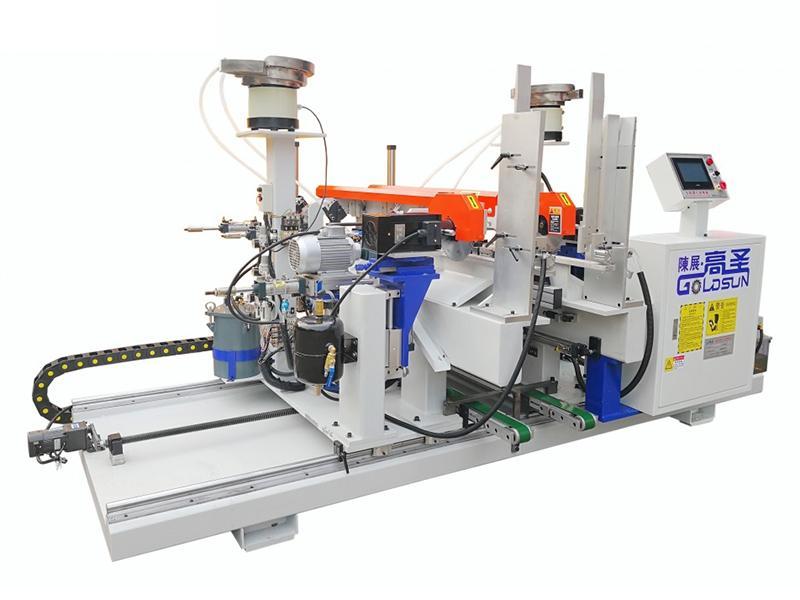

Automatic Double End Drilling Dowelling Tenoner

Automatic Double End Drilling Dowelling Tenoner

Description
This automatic double end drilling dowelling tenoner is mainly used for the production of dining tables and chairs, bedroom cabinets, doorframe and other furniture. This machine features a number of functions, including cutting, drilling, glue-injection and dowelling. The machine replaces manual labor needed for all of that, which increases the efficiency and output. It is capable of processing 10 pieces of timber/minute, totally about 4500 pieces in 8 hours.

Parameters
Drilling motor 1.5KW×2
Length control motor power 1.5KW*2
Manufacturing length 250-2000mm
Manufacturing width 40-150mm
Tenon 8-10mm
Glue White glue injected
Efficiency 10 pcs/minutes
Machine size 3400*1700*2000
Weight 1500Kg

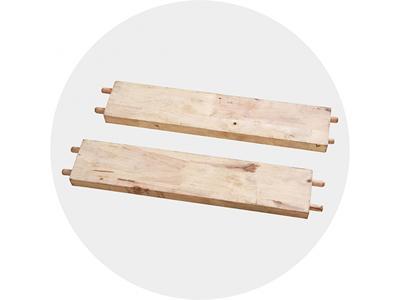

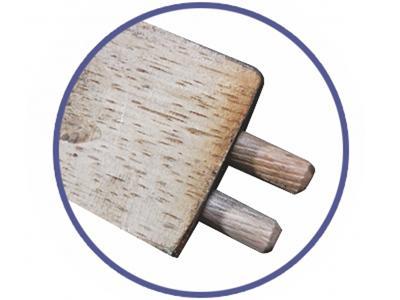

Sample
  • Automatic Double End Drilling Dowelling Tenoner
  • Automatic Double End Drilling Dowelling Tenoner
Characteristics

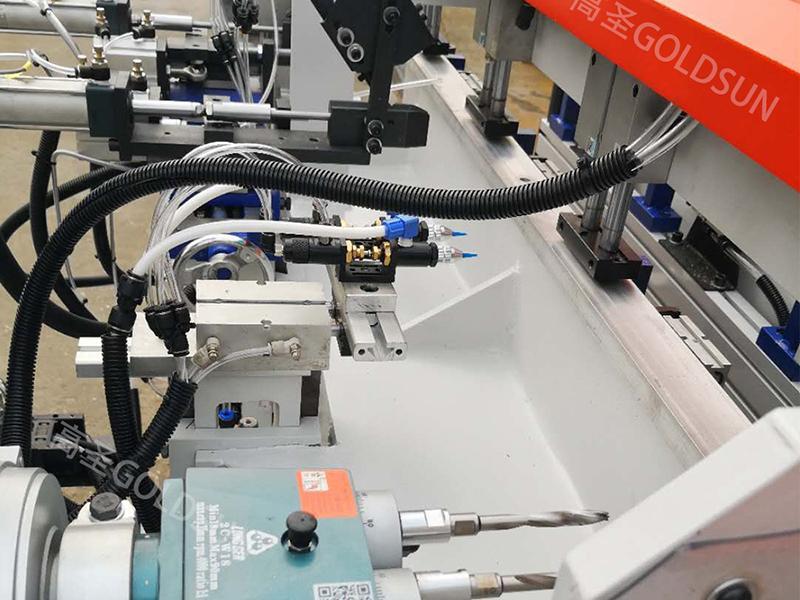

  • This machine carries out cutting, drilling, glue-injection and dowelling functions, and a multipurpose tractor helps save manufacturing costs.
  • This equipment can simultaneously do drilling and doweling work on both ends, and the automatic loading/unloading functions increase the production efficiency.
  • The user interface is simple and clear, which makes it easy to operate.

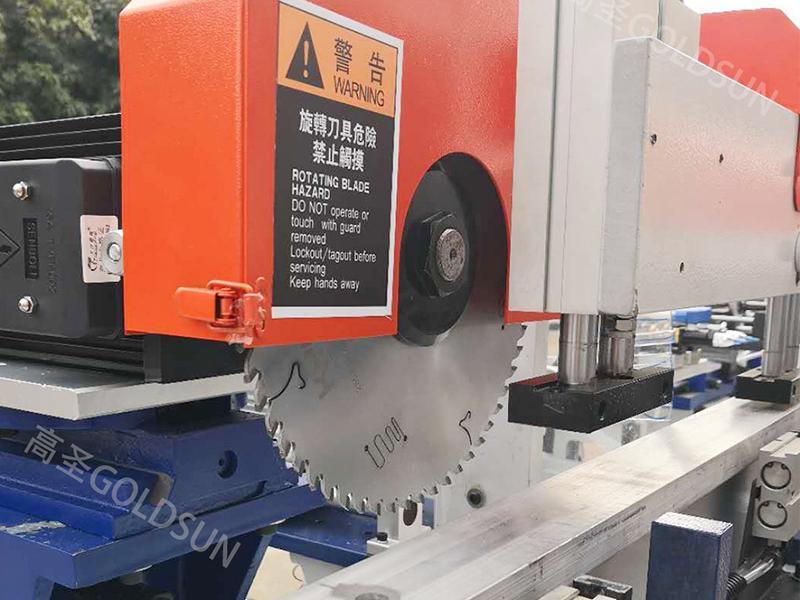

  • The high-quality saw webs, motors, glue-injection equipment and dowelling equipment make the operation smooth and stable.
Related
CNC tenoner, drill press, woodwork router, dowel jig
