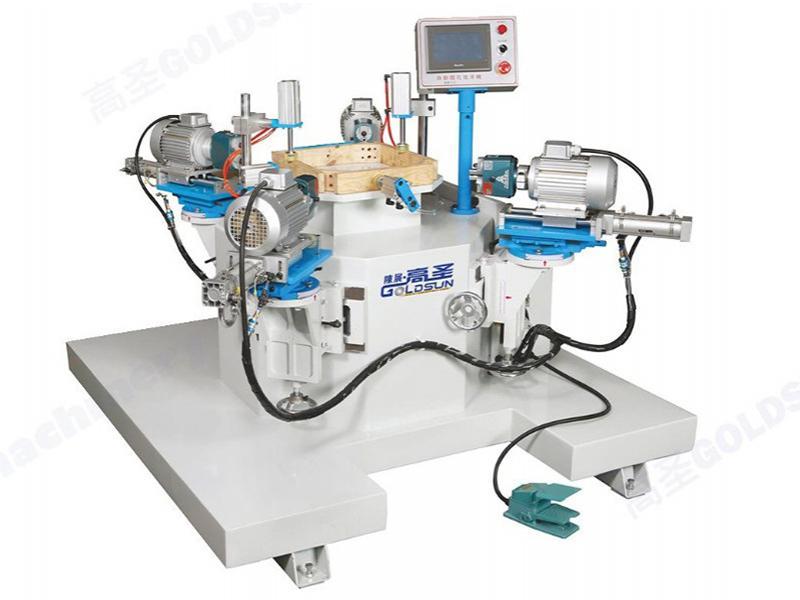

Automatic Seat Frame Drilling Machine

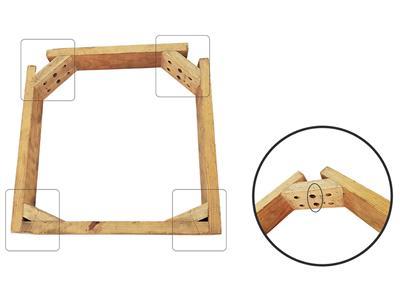

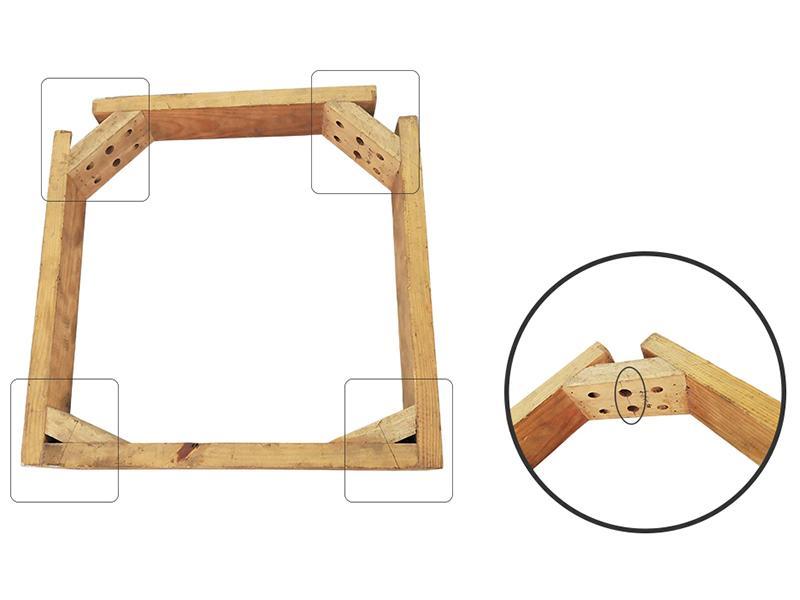

This machine is used for drilling of wooden chair frames, and is equipped with 4 drilling motors in order to drill in all 4 directions. The hole position is precise, given the machine an outstanding production efficiency. Based on customer needs, we can also customize the automatic seat frame drilling equipment with 5 drilling motors. It is capable of processing 6 pieces of timber/minute, and about 2,000 pieces/8 hours.
|Drilling motor ||2hp×4 |
|Four directions ||Adjustable |
|Machine size(length*width*height) ||1500×1500×1200mm |
|Weight ||750kg |
- The drilling design in 4 directions means the machine is equipped with 4 drilling motors to ensure a precise hole position, and gives the machine an overall, better, high production efficiency.
- This machine is easy to control, requiring users only to load/unload the work pieces and save production costs.
- The machine is designed with a compact, space saving structure.
- Clean the working table and place the timbers for frames.
- Load and unload the workpieces manually.
- 4 drilling motors working in 4 directions increases the efficiency.
- Unload the completed workpieces.
