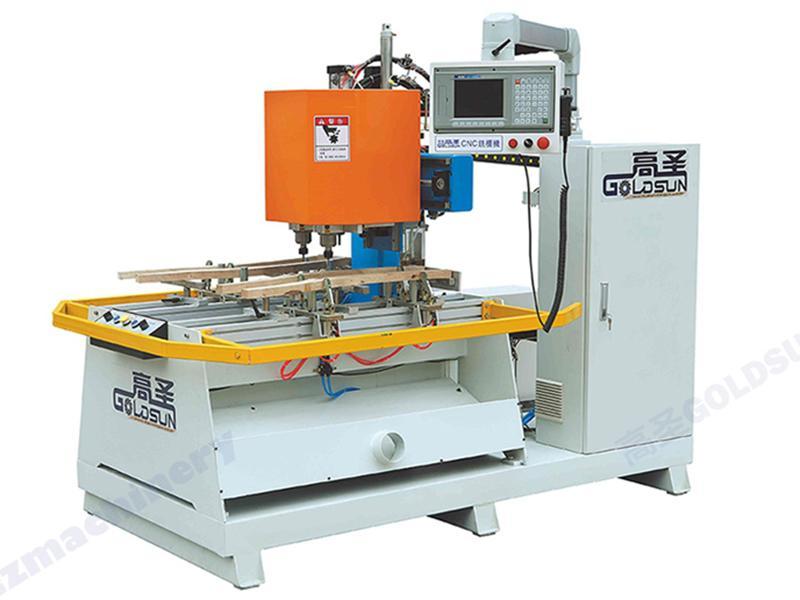

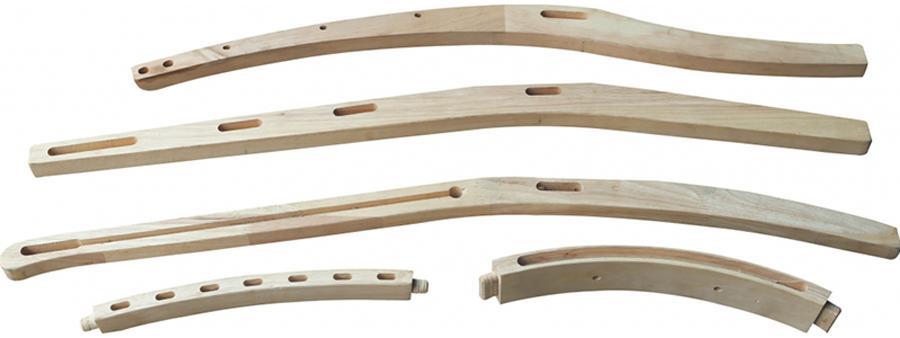

This multiple spindle CNC slot mortiser is vertically aligned and equipped with two processing areas on both the left and right sides. This machine is mainly used for mortising straight and circular arc slots and drilling and reaming for dining tables and chairs. You load wood on the one side when the equipment is working on the other side. After finishing the work on one side, the machine will automatically operate on the other side, so as to realize a seamless, continuous processe. This machine will process 7000~8000 workpieces in 8 hours.
According to the number of cutter shafts, we have 5 models to choose from: GS-28-2×2 slot CNC mortising machine with 2×2 axes (2 on the front, 2 on the back), GS-28-3 3 axis slot CNC mortising machine (3 on the single side), GS-28-4 CNC slot mortiser 4 axis (4 on the single side), GS-28-3×3 slot CNC mortising machine with 3×3 axes (3 on the front, 3 on the back) and GS-28-4×4 spindle slot CNC mortiser with 4×4 axes (4 on the front, 4 on the back).
The GS-28-2×2 slot CNC mortising machine with 2×2 axis operation is equipped with 2 main cutter shafts and 2 sub-cutter shafts. The total power of this machine is 8.85KW, and it can process 7000 pieces of timbers per 8 hours every day.
The manufacturing length can be customized according to customer requirements, and the customized range is 950~2000mm. The number of clamps is 2 groups on both left and right sides when the manufacturing length is 950mm. The number of clamps is 3 groups on both left and right sides when the manufacturing length is 1500mm. The number of clamps is 4 groups on both left and right sides when the manufacturing length is 2000mm.Parameters
|Model||GS-28-2×2 (vertical type) |
|Servo motor||X: 750W Y: 750W Z: 750W|
|Cutter shaft power||Main 2×2.2KW / Sub 2×1.1KW|
|Cutter shaft speed(turn/minute)||18000 r/min|
|Cutter shaft distance||160-350mm|
|Manufacturing length(can be customized)||950mm (maximum in 2000mm)|
|Machine size (L×W×H)||2500×2300×2000mm|
|Clamps||950mm, 2 groups on both left and right sides; 1500mm, 3groups on both left and right sides; 2000mm, 4 groups on both left and right sides.|
Product details show

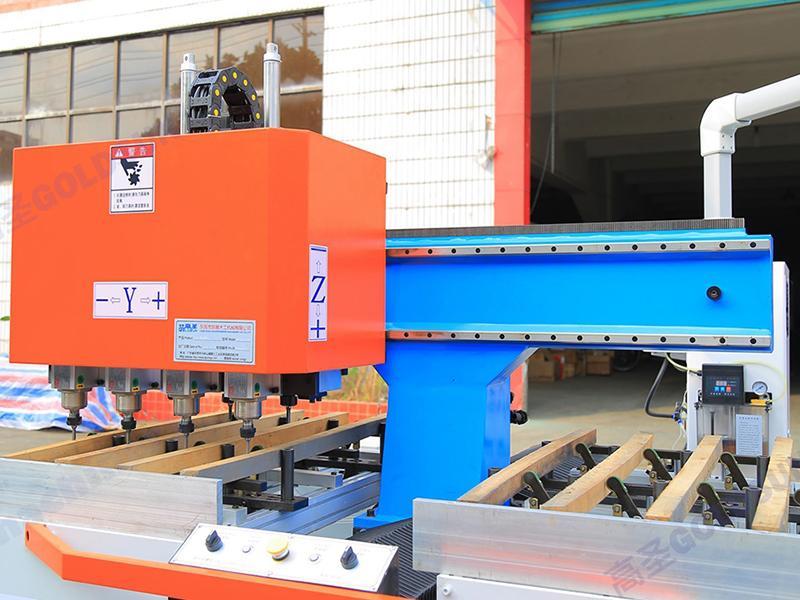

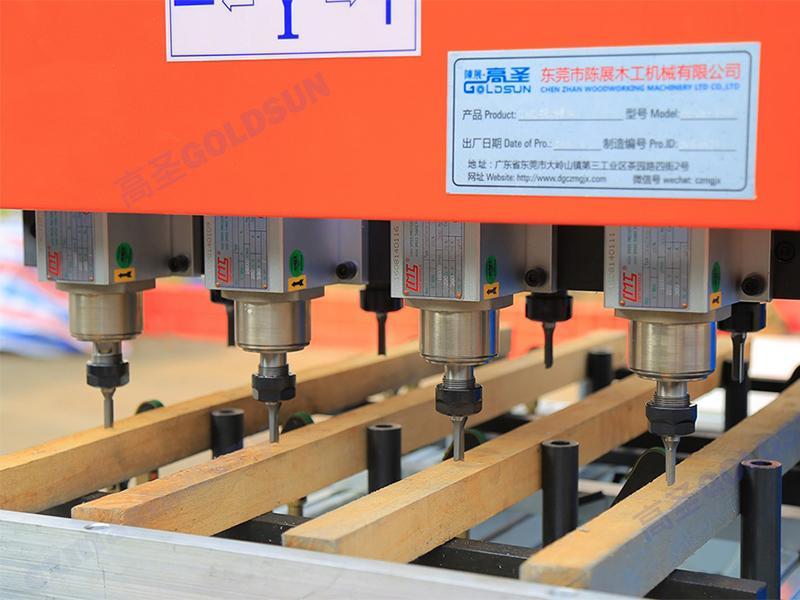

The products is divided by single cutter shaft or double cutter shaft. The double cutter shaft is more efficient. The main shaft is used for slot mortising, and the sub-shaft is used for drilling. Both of the shafts can work at the same time.
The well-designed two processing areas on both left and right sides allow operators to reasonably take advantages of labor and space. You can place the wood on the one side when the equipment is working on the other side. After finishing the work on one side, the machine will automatically operate on the other side to realize a continuous processes.

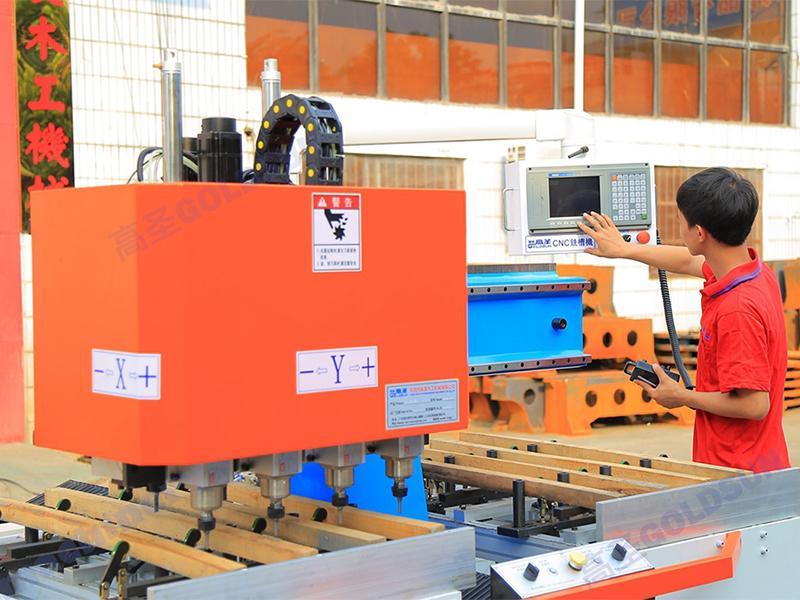

You can debug the position of the hand wheel to mortise different shapes of slots. 200 pre-sets can be saved inside to make the operation more efficient. The user interface is simple and clear, which makes it easy to operate.

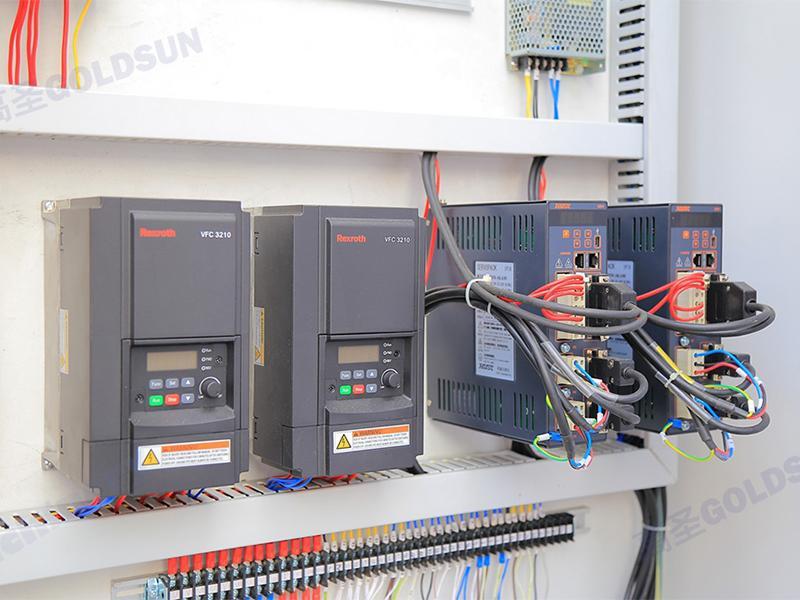

The high-quality servo motor, actuator and well-set circuit ensure the system works smoothly and stably.Instructions
